Trim & Flashing Catalog
Every available trim and flashing profile, flip through the full book below.
All Available Options

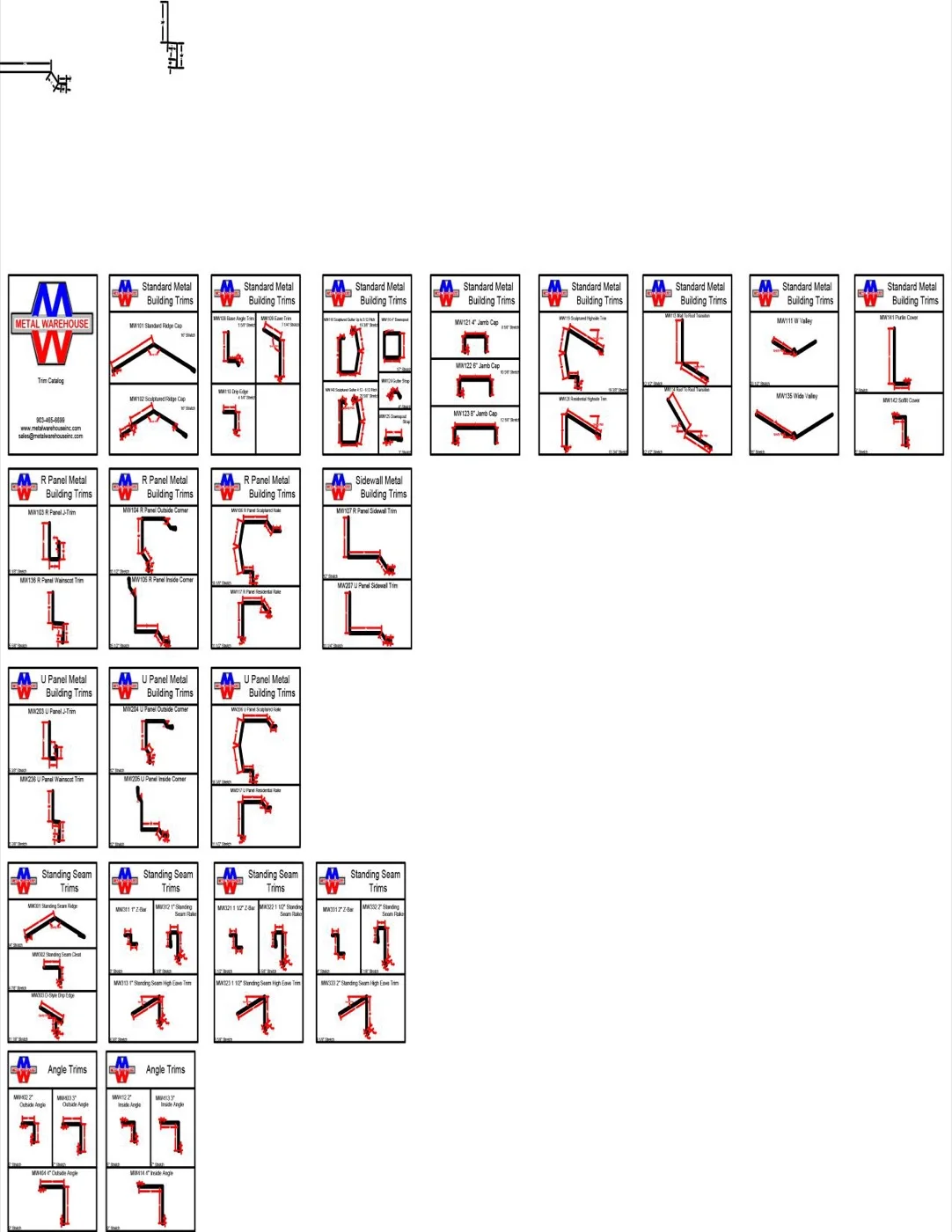

The Full Trim Book
Ridge cap, rake, eave, gable, corner, J-channel, drip edge, and custom profiles. Use the arrows or thumbnails to flip through all 23 pages, or download the PDF.
Need a trim not shown here? We fabricate custom profiles in-house.
Find a Profile
Trim Index
All 53 profiles with part numbers and dimensions. Type a part number or a name, or filter by the panel you are running.
Standard Building Trims
Top trims, side trims and wall trims that finish a metal building at its edges and transitions.
| Part No. | Profile | Dimensions |
|---|---|---|
| MW101 | Standard Ridge Cap | 4" legs, 16" stretch |
| MW102 | Sculptured Ridge Cap | 7-1/2" legs, 1-3/4" overhang |

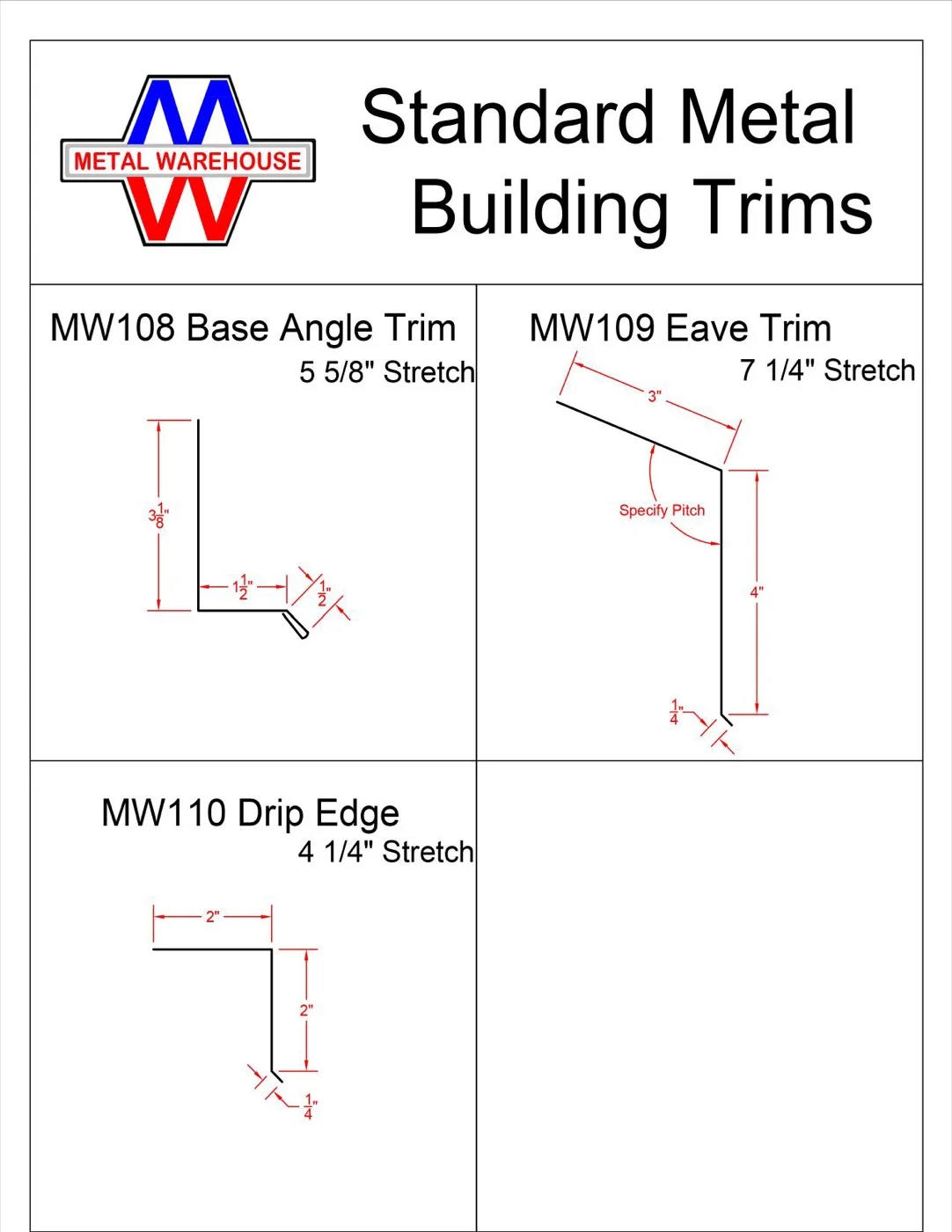

| MW108 | Base Angle Trim | 3-1/8" x 1-1/2", 5-5/8" stretch |
| MW109 | Eave Trim | 3" top, 4" face, 7-1/4" stretch |
| MW110 | Drip Edge | 2" x 2", 4-1/4" stretch |

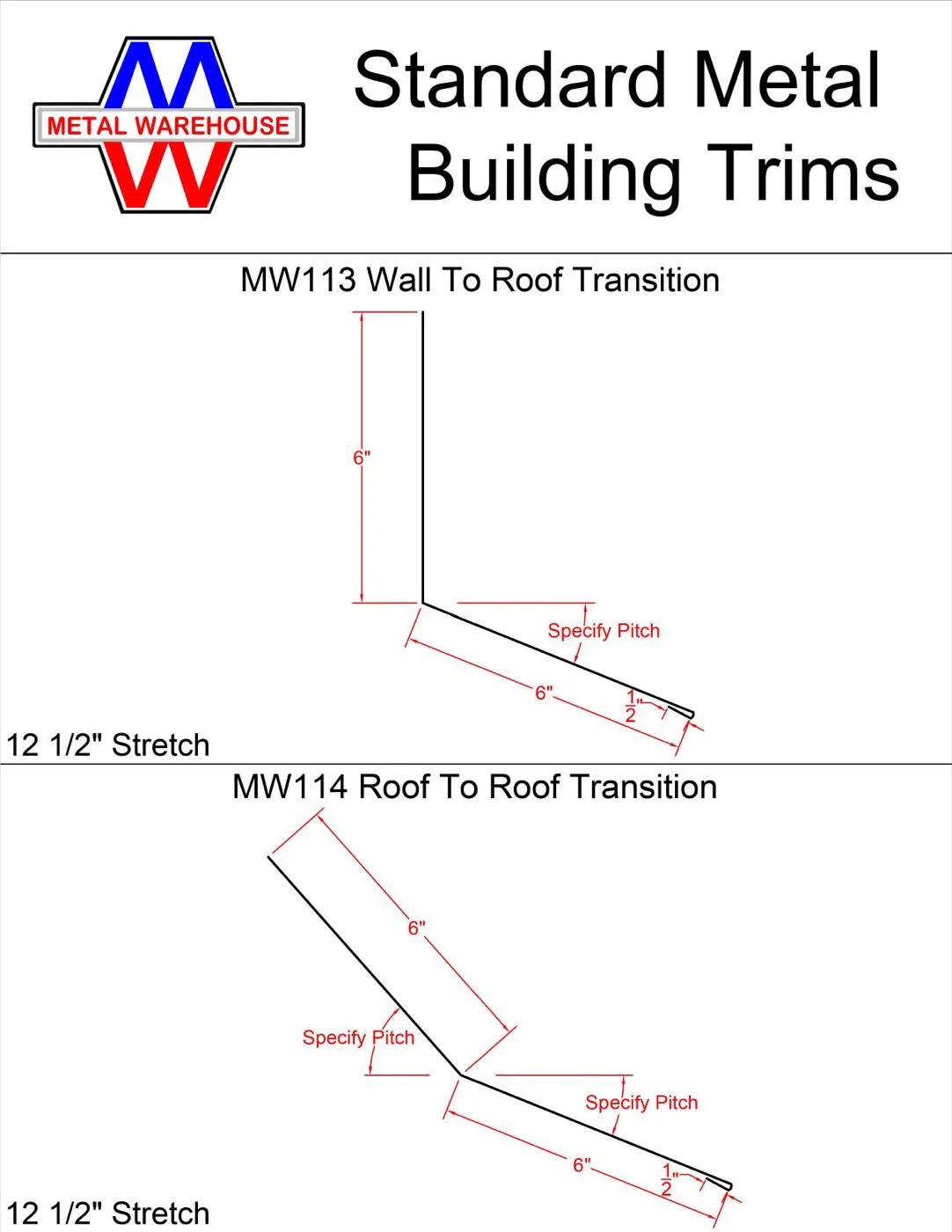

| MW113 | Wall-to-Roof | 6" x 6", 12-1/2" stretch |
| MW114 | Roof-to-Roof | 6" x 6", 12-1/2" stretch |

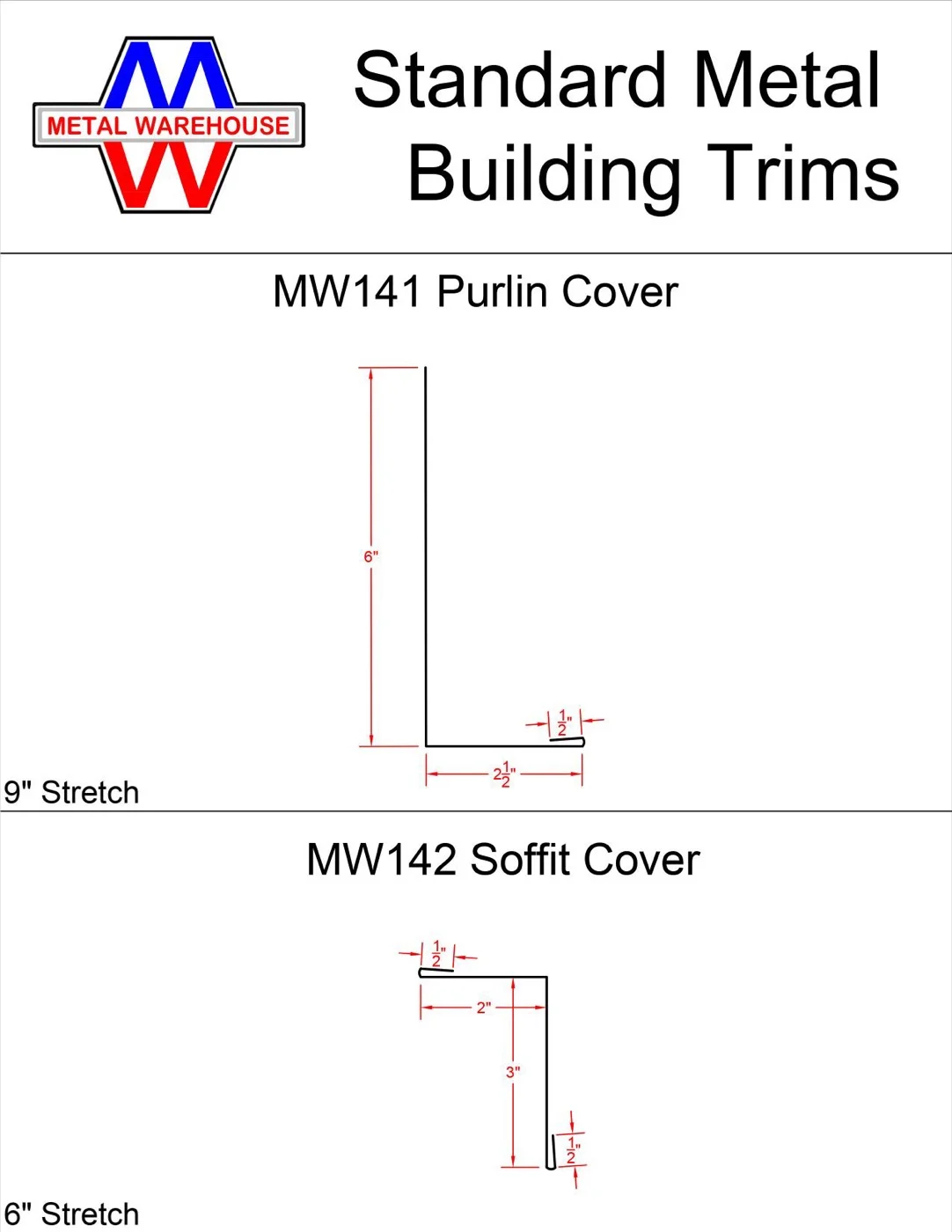

| MW141 | Purlin Cover | 6" wide, 2-1/2" legs |
| MW142 | Soffit Cover | 6" wide, 3" legs |

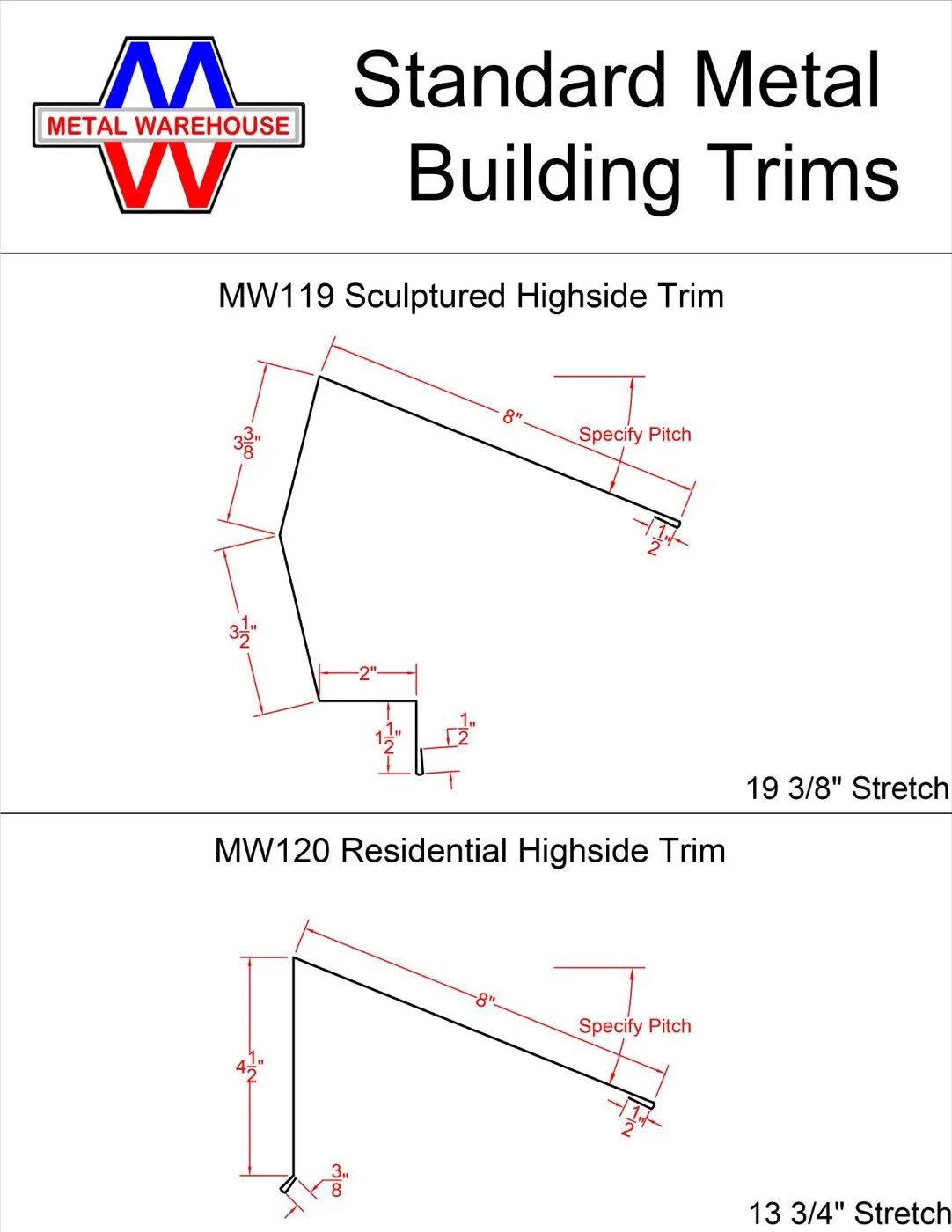

| MW119 | Sculptured Highside | 8" wide, 19-3/8" stretch |
| MW120 | Residential Highside | 8" x 4-1/2", 13-3/4" stretch |
Gutters, Downspouts & Valleys
Everything that moves water off the roof and away from the building.
| Part No. | Profile | Dimensions |
|---|---|---|

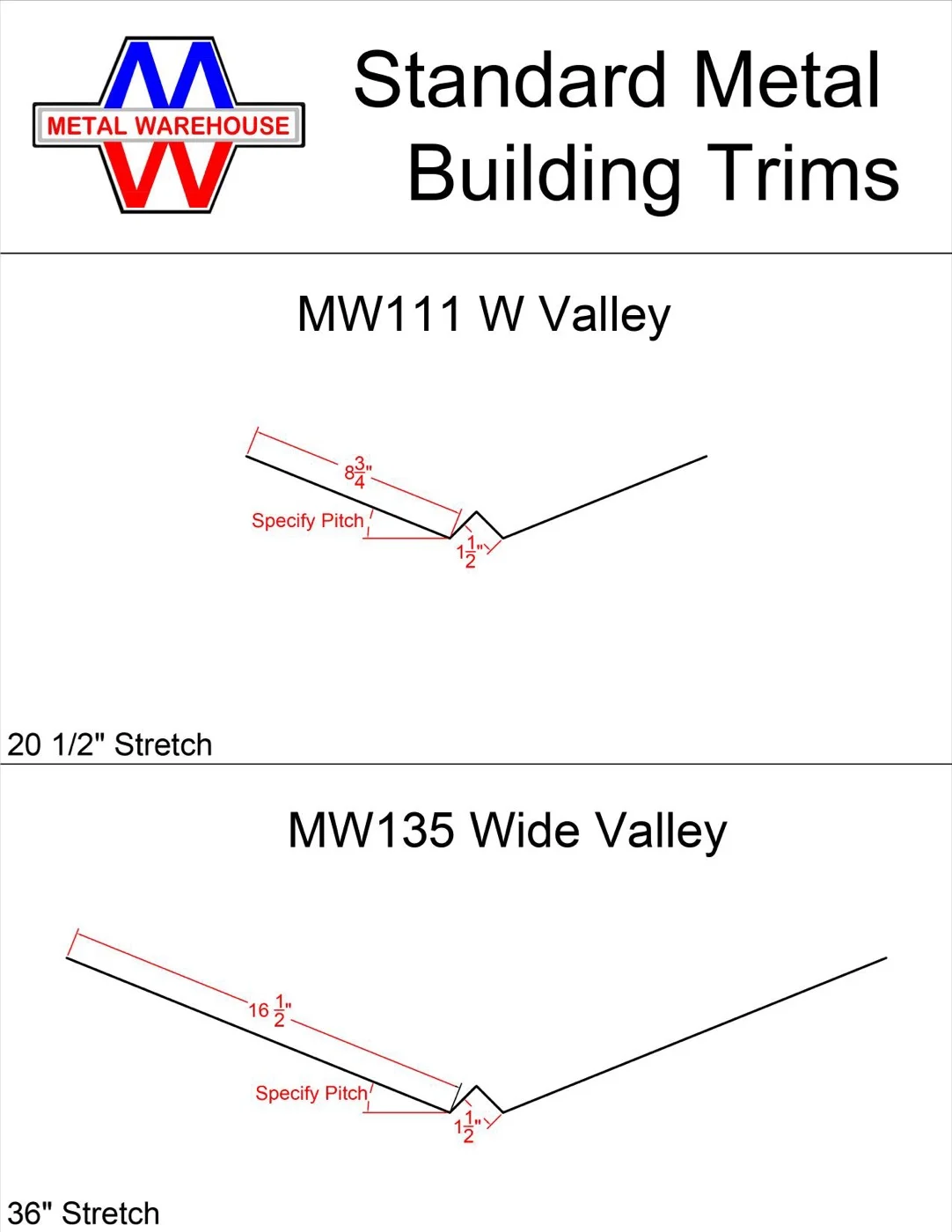

| MW111 | W Valley | 8-3/4" legs, 20-1/2" stretch |
| MW135 | Wide Valley | 16-1/2" wide, 36" stretch |

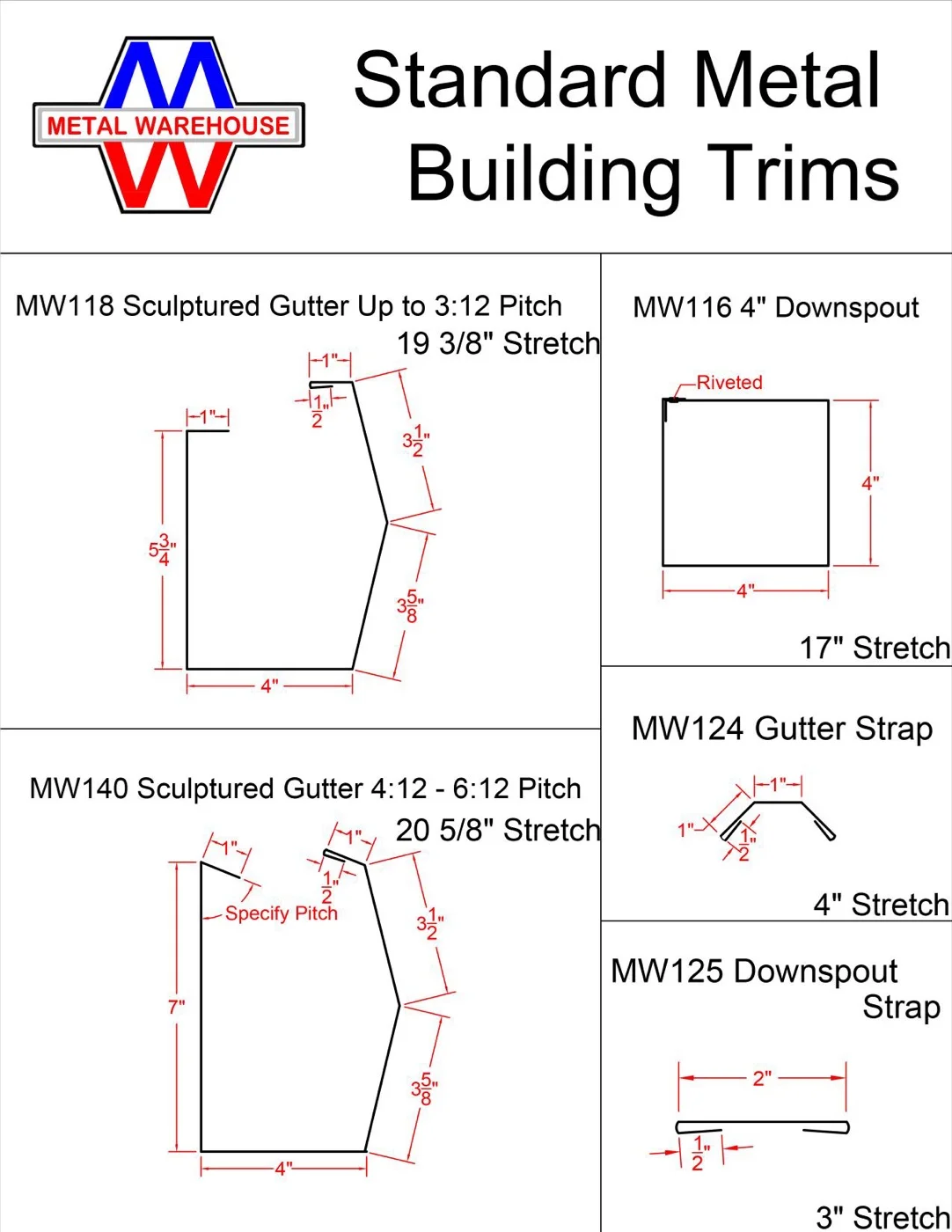

| MW118 | Sculptured Gutter, 3:12 and below | 5-3/4" x 4", 19-3/8" stretch |
| MW140 | Sculptured Gutter, 4:12 to 6:12 | 7" x 4", 20-5/8" stretch |
| MW124 | Gutter Strap | 1" x 1", 3" stretch |
| MW116 | 4" Downspout | 4" x 4", 17" stretch |
| MW125 | Downspout Strap | Wraparound bracket |
Jamb Caps
Cap the jamb on framed openings.
| Part No. | Profile | Dimensions |
|---|---|---|

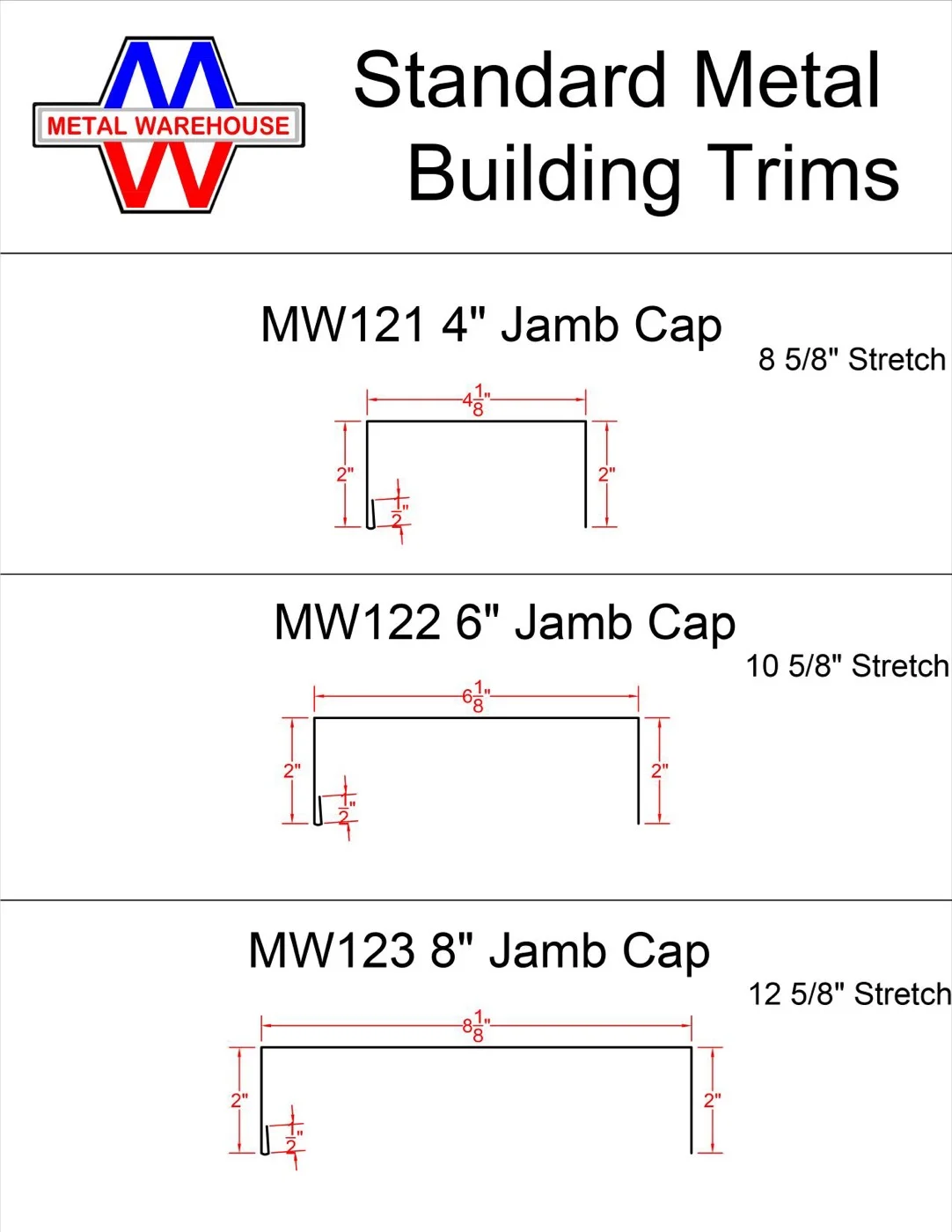

| MW121 | 4" Jamb Cap | 4", 8-5/8" stretch |
| MW122 | 6" Jamb Cap | 6", 10-5/8" stretch |
| MW123 | 8" Jamb Cap | 8", 12-5/8" stretch |
R-Panel Trims
Sized for PBR (R-Panel) at 36" coverage with the 1-1/4" major rib.
| Part No. | Profile | Dimensions |
|---|---|---|

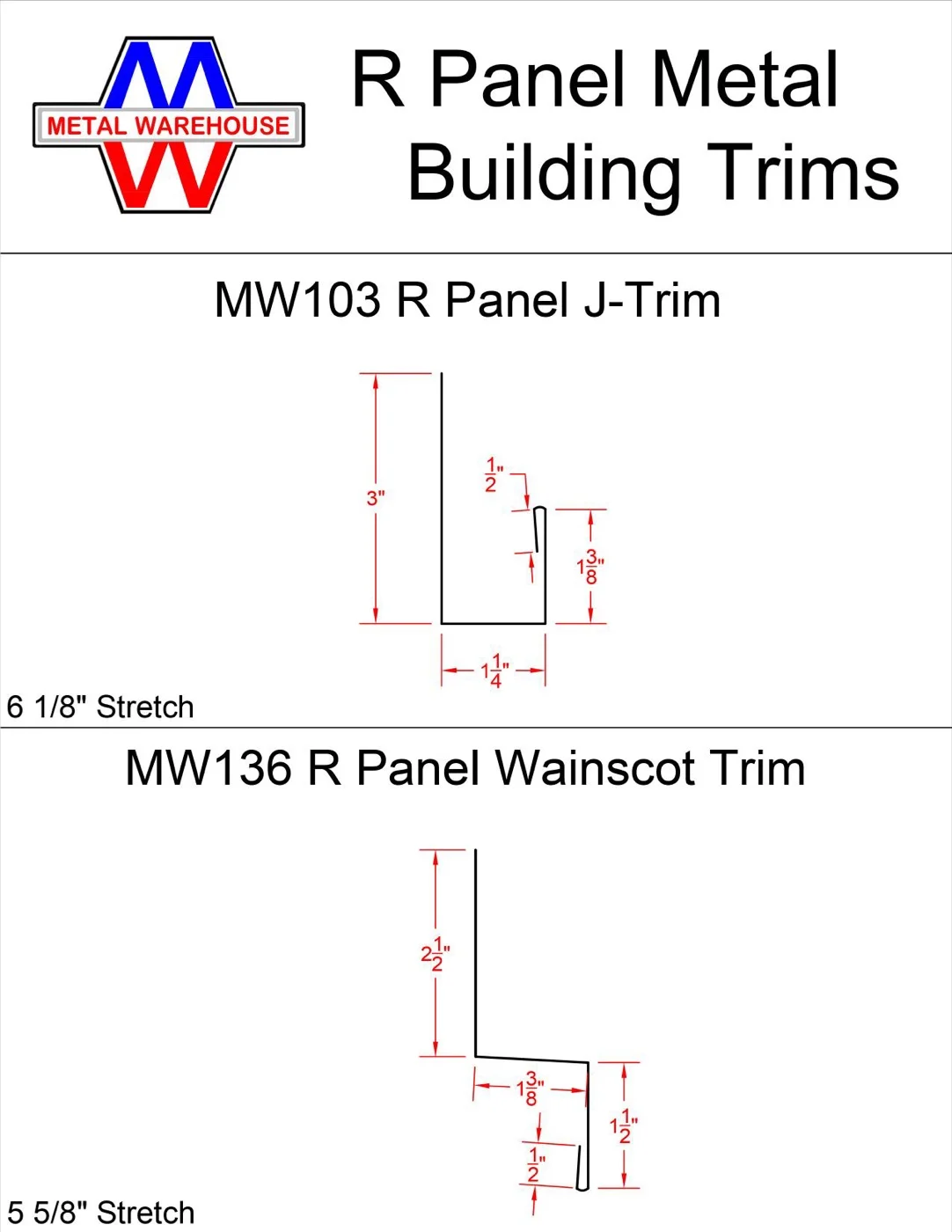

| MW103 | J-Trim | R-Panel J-channel |
| MW136 | Wainscot | R-Panel wainscot |

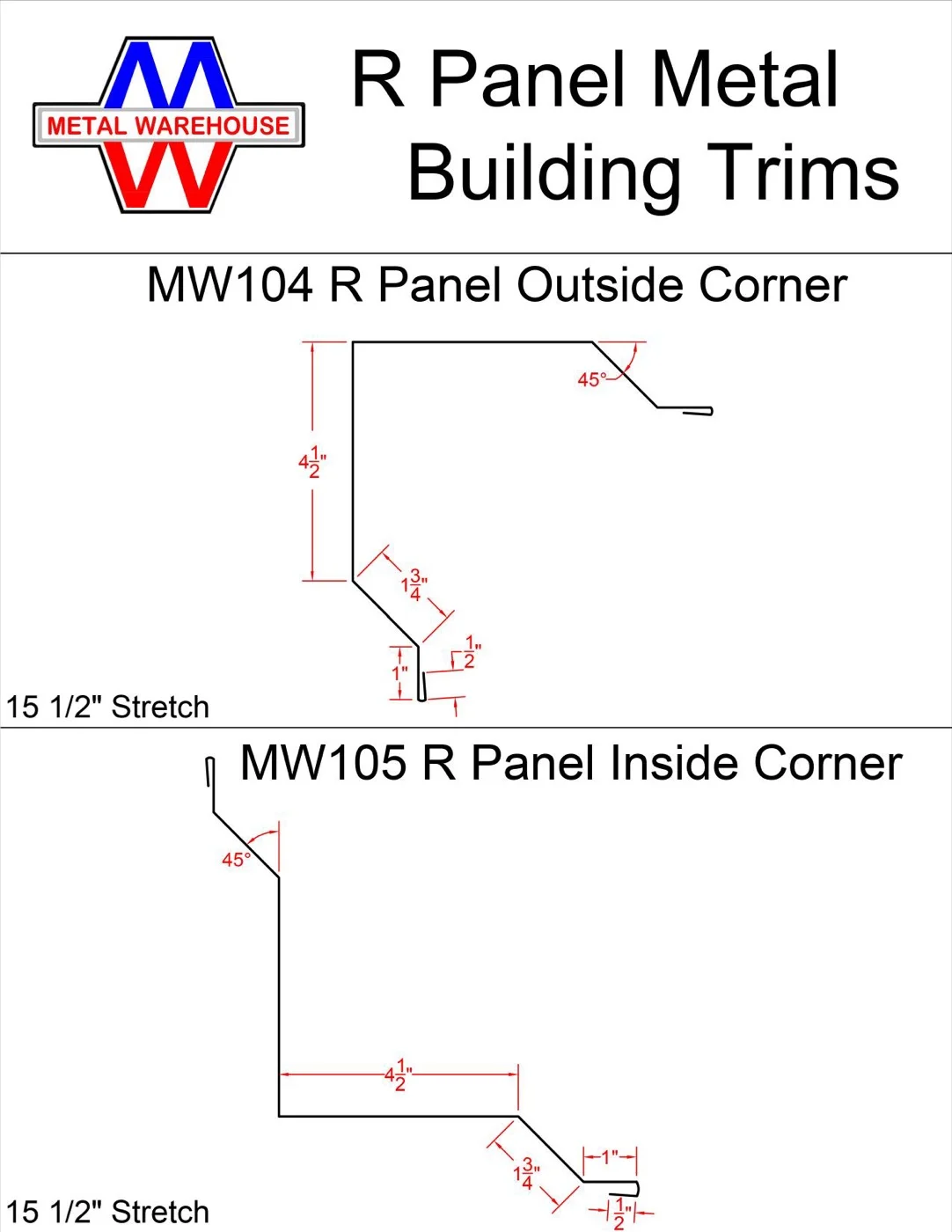

| MW104 | Outside Corner | 4-1/2" legs |
| MW105 | Inside Corner | 4-1/2" legs |
| MW106 | Sculptured Rake | R-Panel sculptured |
| MW117 | Residential Rake | R-Panel residential |

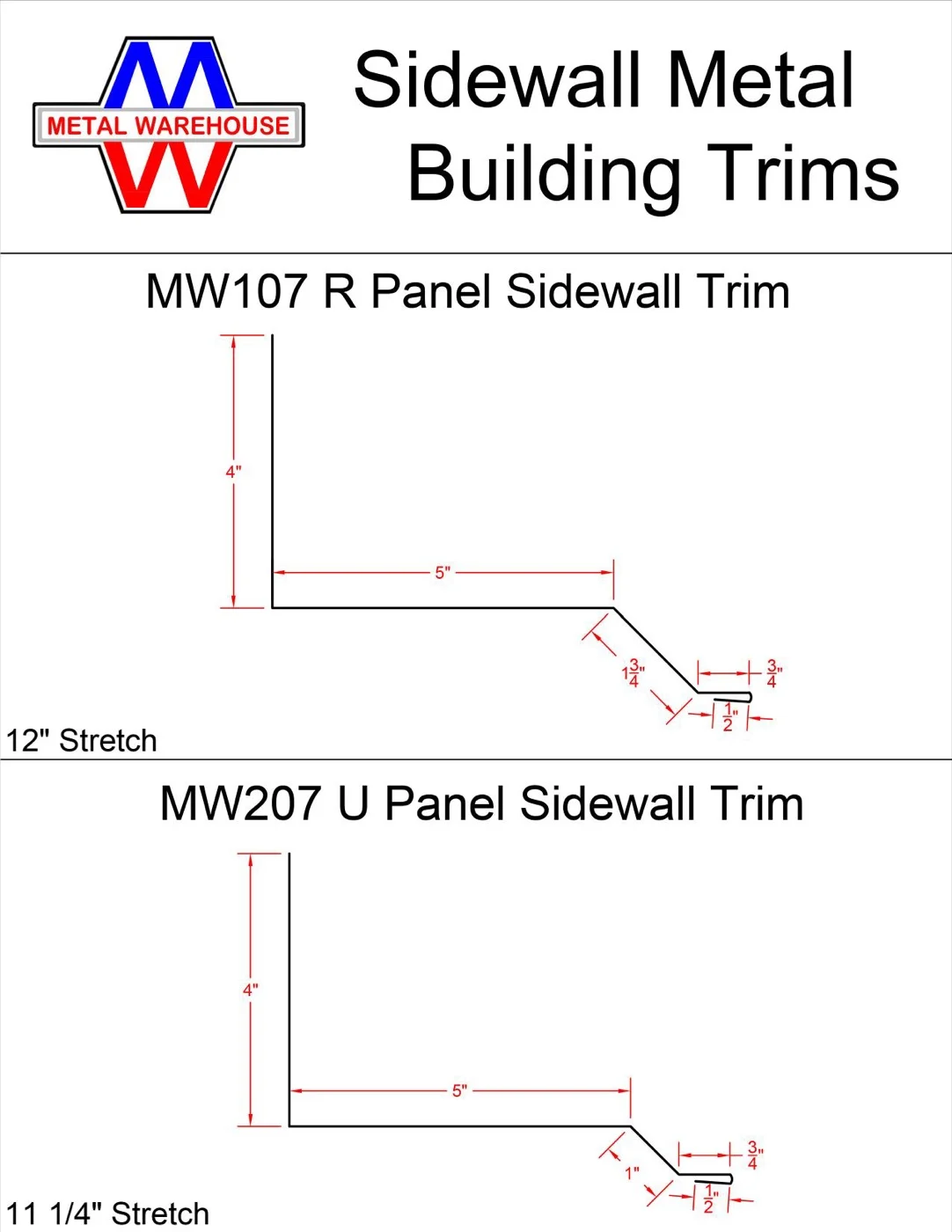

| MW107 | Sidewall | R-Panel sidewall |
U-Panel Trims
Sized for PBU at 36" coverage with the 3/4" rib.
| Part No. | Profile | Dimensions |
|---|---|---|

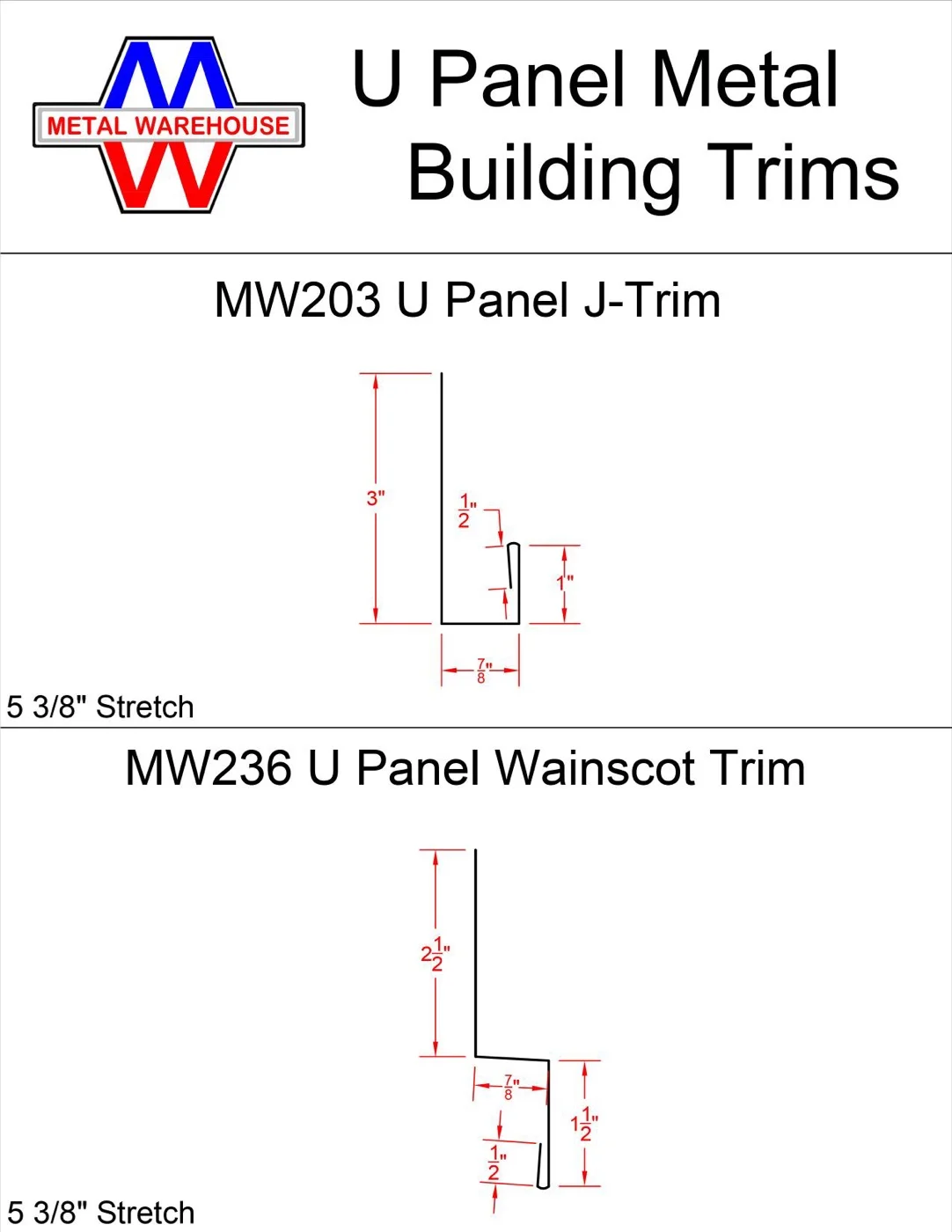

| MW203 | J-Trim | U-Panel J-channel |
| MW236 | Wainscot | U-Panel wainscot |

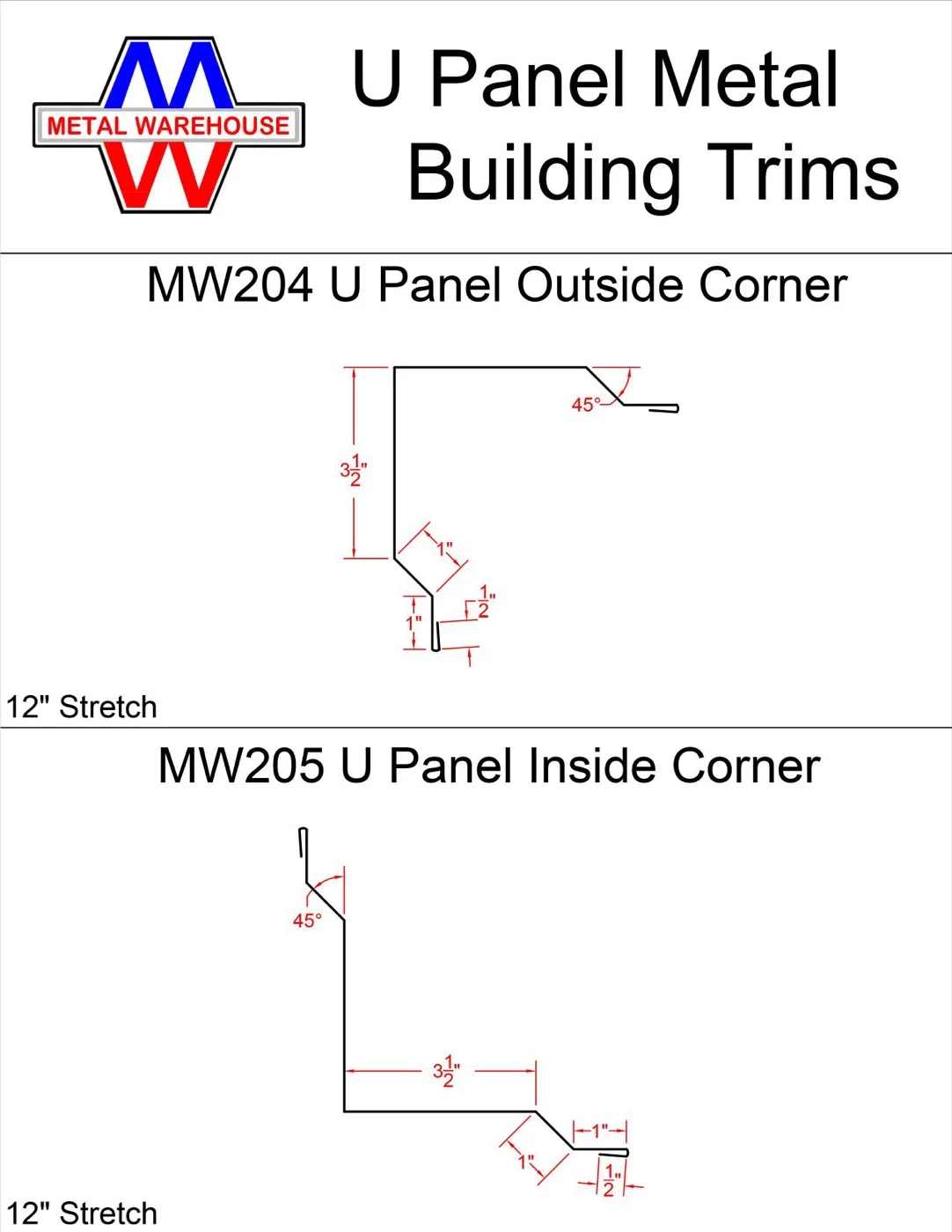

| MW204 | Outside Corner | 3-1/2" legs |
| MW205 | Inside Corner | 3-1/2" legs |

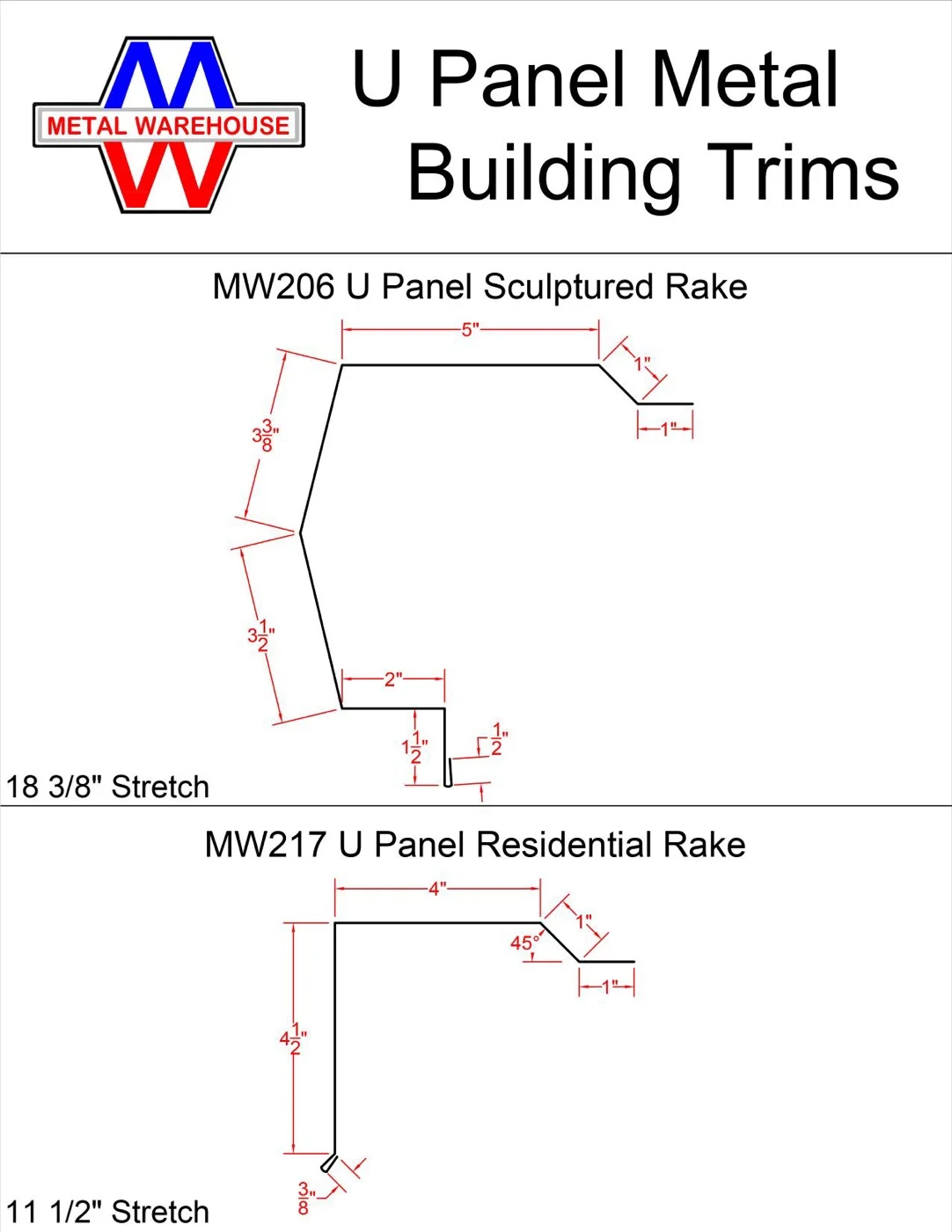

| MW206 | Sculptured Rake | U-Panel sculptured |
| MW217 | Residential Rake | U-Panel residential |
| MW207 | Sidewall | U-Panel sidewall |
Standing Seam Trims
Z-Bars, Seam Rakes and High Eave trims come in three rib-height variants, one to match each standing seam panel: 1" Nail Strip, 1-3/4" Snap Lock and 2" Mechanical Lock.
| Part No. | Profile | Dimensions |
|---|---|---|

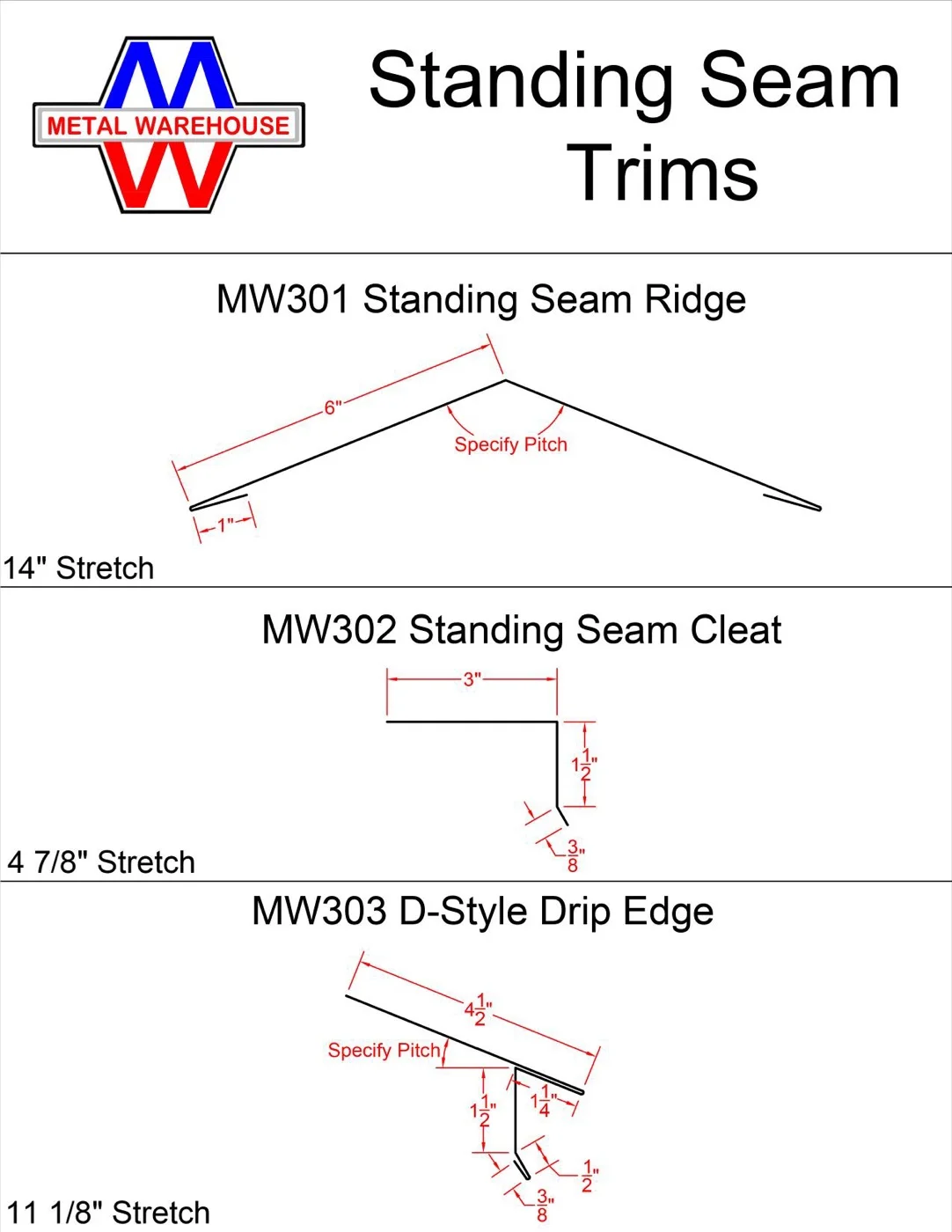

| MW301 | SS Ridge Cap | 6" legs |
| MW302 | Cleat | Standing seam clip cleat |
| MW303 | D-Style Drip Edge | Standing seam drip edge |

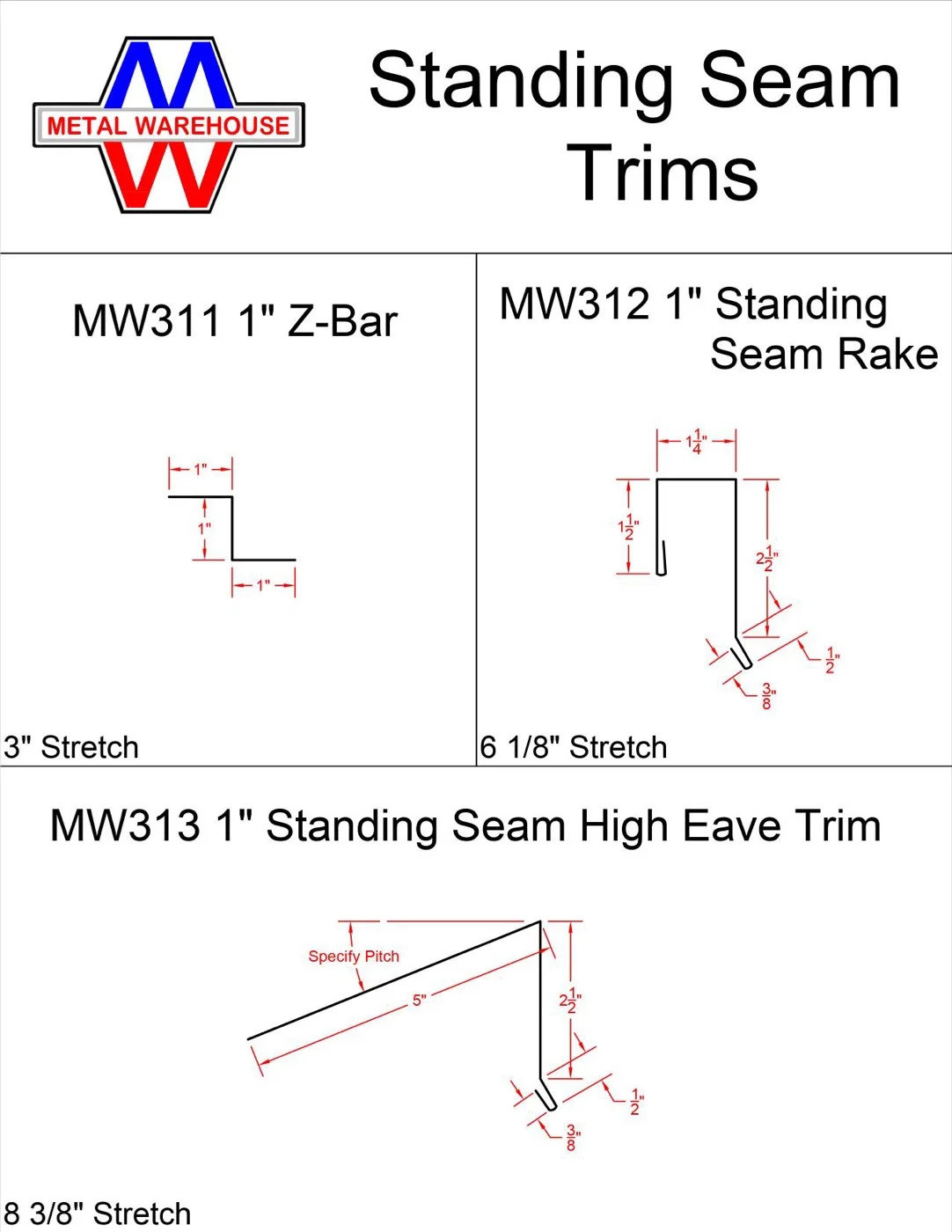

| MW311 | 1" Z-Bar | 1" rib height |

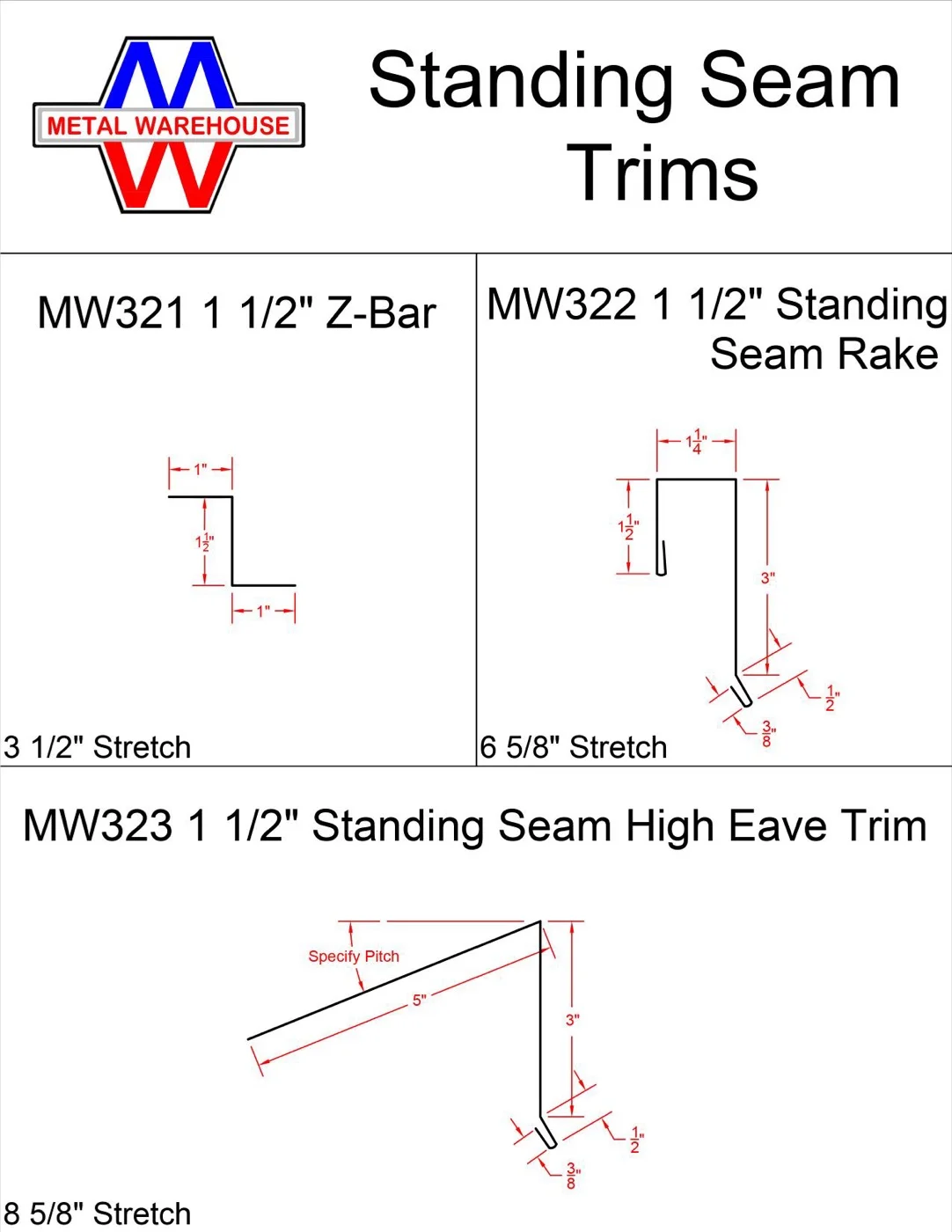

| MW321 | 1-1/2" Z-Bar | 1-1/2" rib height |

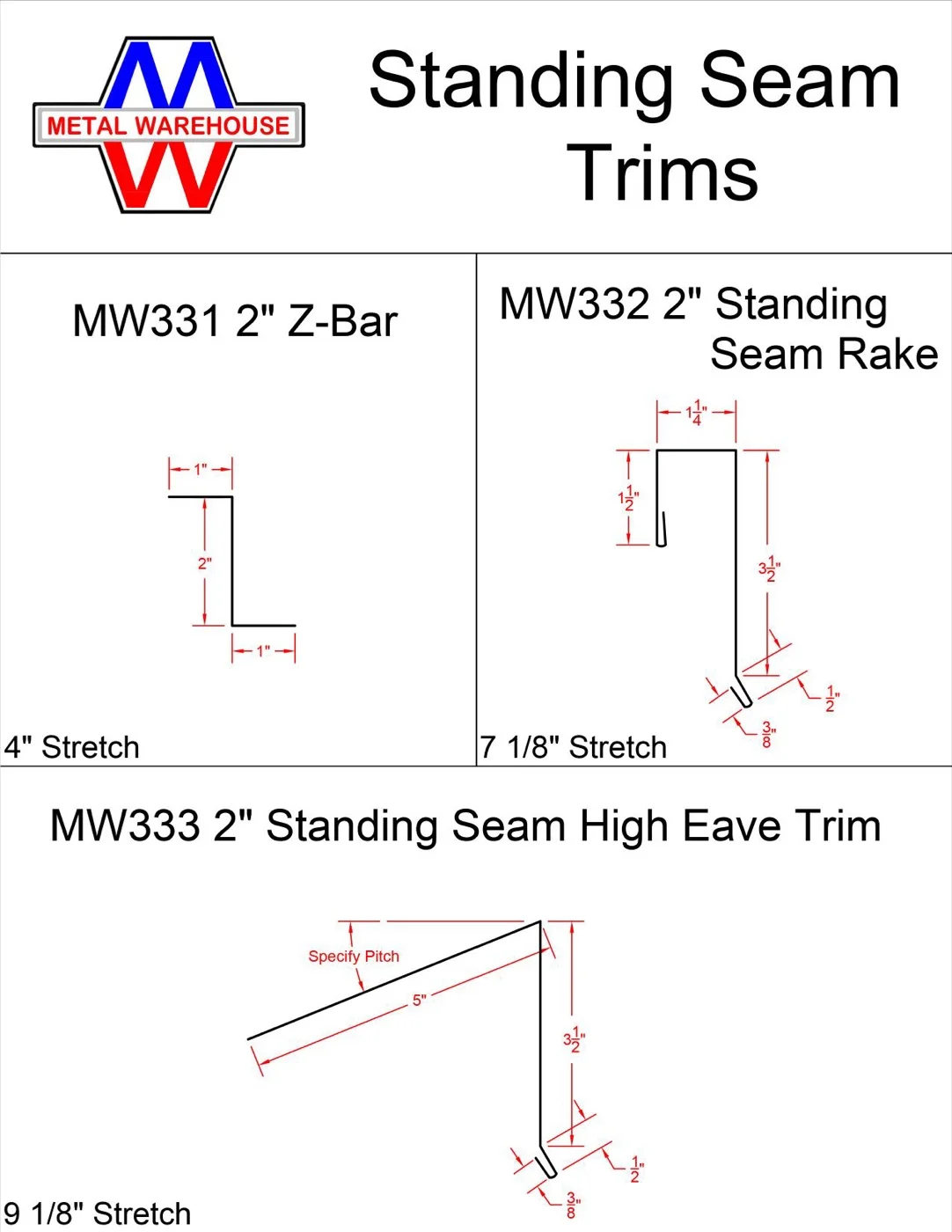

| MW331 | 2" Z-Bar | 2" rib height |
| MW312 | Seam Rake, 1" | 1" rib height |
| MW322 | Seam Rake, 1-1/2" | 1-1/2" rib height |
| MW332 | Seam Rake, 2" | 2" rib height |
| MW313 | High Eave, 1" | 1" rib height |
| MW323 | High Eave, 1-1/2" | 1-1/2" rib height |
| MW333 | High Eave, 2" | 2" rib height |
Angle Trims
Plain outside and inside angles in three sizes.
| Part No. | Profile | Dimensions |
|---|---|---|

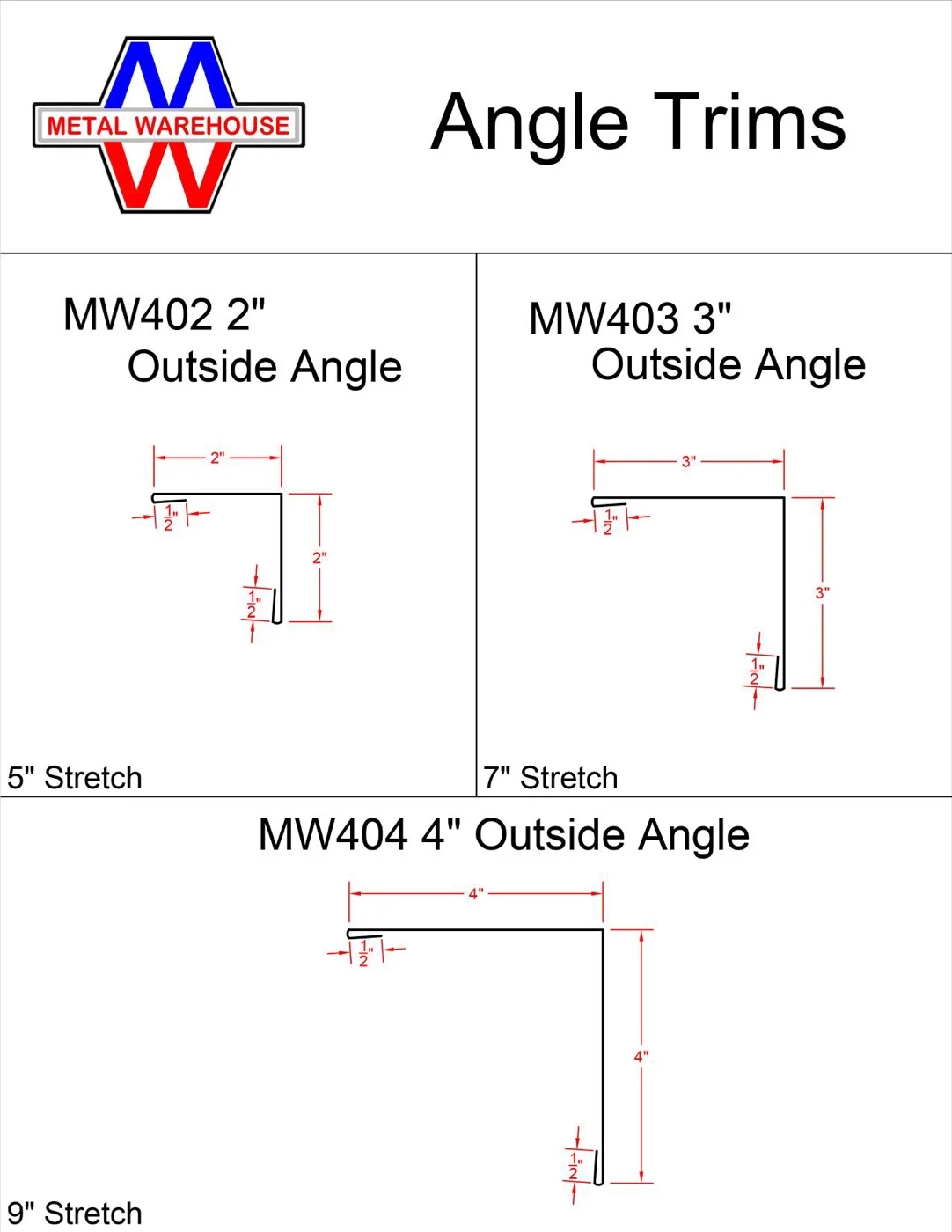

| MW402 | 2" Outside Angle | 2" x 2" |
| MW403 | 3" Outside Angle | 3" x 3" |
| MW404 | 4" Outside Angle | 4" x 4" |

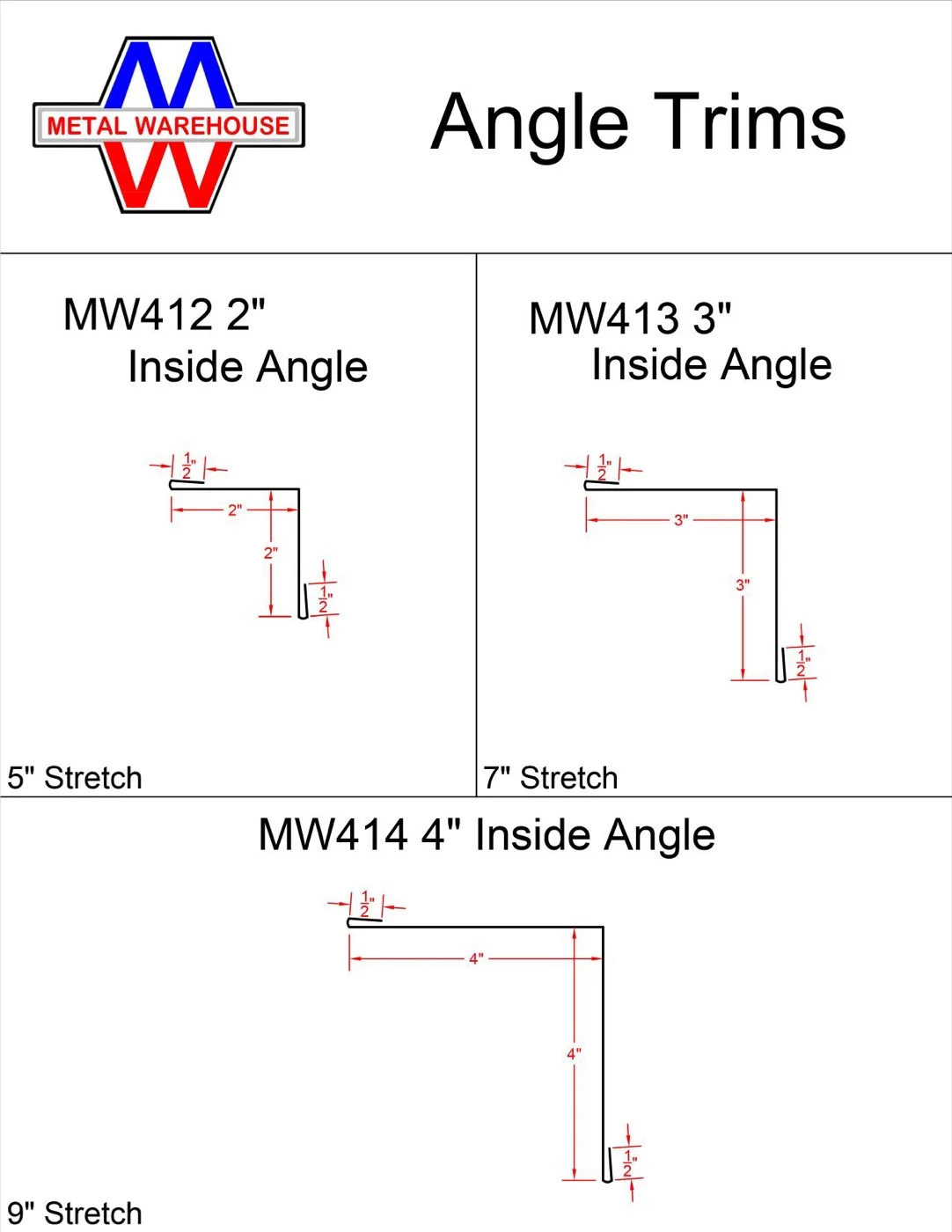

| MW412 | 2" Inside Angle | 2" x 2" |
| MW413 | 3" Inside Angle | 3" x 3" |
| MW414 | 4" Inside Angle | 4" x 4" |
No trim matches that search. We also fabricate custom profiles, so send us your drawing or call (903) 465-6699.
Standard stretch lengths run 10' 3" through 21' 0". All trim profiles are available in any stock color and gauge to match your panel order.
Metal Trim & Flashing, Made to Finish the Job Right
Trim and flashing are the finishing pieces of a metal roof or wall: the parts that close off edges, seal transitions, and shed water away from the seams. Good trim is what makes a metal building look sharp and stay watertight for decades. Metal Warehouse Inc. stocks and fabricates the full range of profiles in the same colors and gauges as our panels, so every piece matches.
Ridge Cap
Caps the peak where two roof slopes meet, sealing the ridge line against wind-driven rain.
Rake & Gable
Runs down the sloped roof edge at the gable end for a clean, finished, weather-tight border.
Eave & Drip Edge
Directs runoff off the roof edge and away from the wall and fascia below.
Corner & J-Channel
Wraps outside corners and frames openings so panel ends are tucked in and sealed.
The index above lists all 53 profiles with part numbers and dimensions, and the book shows the drawing for each one across 23 pages. If you need a profile that is not in the catalog, we bend custom trim to your drawing in-house, cut to length and color-matched to your panels.
